Future possible SimmStick Product. User feedback welcome.

Subject: ATMEL AVR 90s2333/4433 for Simmstick
Date: Wed, 19 May 1999 18:00:07 EDT
From: Spam Suppressed. @aol.com
To: don@dontronics.com

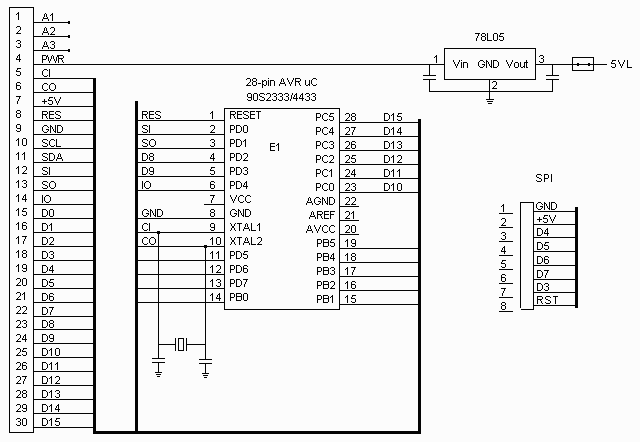

Partial schematic for possible implementation attached for your amusement. Feel free to re-distribute; comments welcome but not expected. I understand Atmel won't have 28-pin PDIP parts available until August (?);
I'm not sure when I'll pick this up again.
Possible additional circuitry:
   232 Driver
    run bus lines A1-A3 to 3-8 decoder, decoder output to slave-select
       or
    use A1-A3 with AREF,AVCC,AGND
/s/ Jeff Hastings
    ---------------------------------------------------------------------

                   Name: dt105.bmp
   dt105.bmp       Type: Paint Shop Pro 5 Image (image/bmp)
               Encoding: base64
